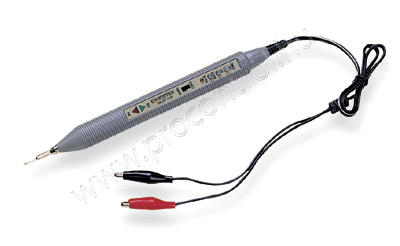

GLP-1A logic pulsers
Kurzbeschreibung
The GLP-1A logic pulsers can be used to perform in-circuit testing of TTL, CMOS, and many other logic devices at a maximum of 50MHz. The GLP-1A is enhanced with a logic probe function with a minimum detectable pulse width of 10 ns, providing enough sensitivity for most applications. A Short 10 sec pulse width assures that no damage will occur to circuits whilst testing. With a weight less than 50g, a non-slip grip and an external sync input all provide comfort and reliability for various
troubleshooting tasks.
Technische Daten:
|
Max Eingangsfrequenz
|
50MHz
|
|
Eingangsimpedanz
|
120kΩ
|
|
Verspannung
|
4V DC (minimum)
18V DC (maximum)
|
|
TTL
|
Logic "1" (HI LED) >3.0V +0.25V Logic "0" (LO LED) <0.75V +0.25V
|
|
CMOS
|
Logic ""1"" (HI LED) >60%Vcc +5%
Logic ""0"" (LO LED) <15%Vcc +5%, <40% +5% (For 7 ~ 18Vcc)
|
|
Synch input Impedance
|
1MΩ
|
|
Impulswertigkeit
|
0.5/400pps
|
|
Impulsbreite
|
10μS
|
|
Ausgangsstrom
|
100mA
|
|
Rechteck-Wellenform Output
|
5mA
|
|
Ausgangsschutz
|
20V DC (maximum 30 sec)
|
|
Eingangsschutz
|
120V DC (maximum 30 sec)
|
|
Meßstellung Schutz
|
35V DC (maximum 30 sec)
|
|
Maße (mm)
|
18(W) x 210(H) x 18(L) mm
|
|
Gewicht
|
0,05 kg
|
Mentés
Technische Beschreibung
Combining a Logic Probe and Pulser Combined into One
Probe for Troubleshooting Digital Circuits
Operating Voltage: 4VDC ~ 18VDC
Maximum Input Signal Frequency: 50MHz
TTL: Logic “1”>3.0V±0.25V, Logic”0”<0.75±0.25V
CMOS: Logic “1”>60%VCC±5%, Logic”0”<15%VCC±5%
Minimum Detectable Pulse Width: 10nsec
Pulser: Sync input impedance 120k?
Pulse Repetition Rate: Switchable 0.5/400Hz
Pulse width: 10µsec
Dimensions & Weight: 18(W)x210(H)x18(D)mm, Approx. 50g
