GWInstek PFR-100L, FANLESS MULTI-RANGE D.C. POWER SUPPLY

Brief description

The PFR-100 series, a small and highperformance programmable D.C. power supply, adopts natural convection design to dissipate heat. The fanless structure allows users to focus on their experiments and tests in a quiet environment. Fanless power supply will not suck in dust and foreign objects, therefore, PFR-100 series has a longer life cycle compared with that of power supplies with fan.

Properties

• The PFR-100 series is a power supply with a five-fold rated power that allows users to self-define voltage and current under rated power conditions so as to satisfy them with wider voltage and current operational ranges. PFR-100 series, with rated 100W, provides two models: PFR-100L- maximum output voltage of 50V (at 2A) or maximum output current of 10A (at 10V); PFR100M- maximum output voltage of 250V (at 0.4A) or maximum output current of 2A (at 50V).

Package contains

• CD(User Manual, Programming manual) x 1 , Power cord x 1
• GTL-134 test lead , Accessory Packages
• GTL-104A test lead (for PFR-100L only) ,
• GTL-105A test lead (for PFR-100M only)

Mentés

Types

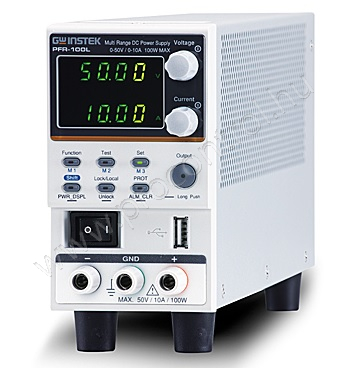

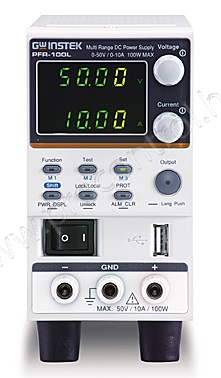

• PFR-100L (0 ~ 50V / 0 ~ 10A / 100W) Fanless Multi-Range D.C. Power Supply
• PFR-100LGP LAN GPIB

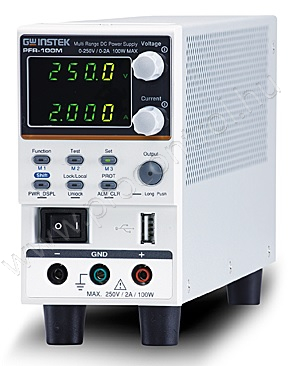

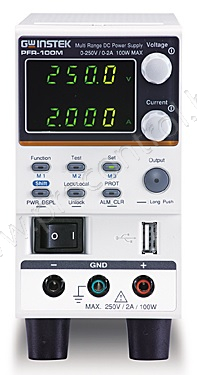

• PFR-100M (0 ~ 250V / 0 ~ 2A / 100W) Fanless Multi-Range D.C. Power Supply
• PFR-100MGP LAN GPIB

Options

• OPTIONAL ASSESSORIES
• - GPIB Cable, 2000mm
• - PSU-232 RS 232 Cable with DB9 Connector Kit
• - PSU-485 RS-485 Cable with DB9 Connector Kit
• - GTL-246 USB Cable (USB 2 0 Type A ,TypeB Cable)
• - GRA-431-J-100 Rack mount Kit (JIS) with AC 100V -
• - GRA-431-J-200 Rack mount Kit (JIS) with AC 200V
• - GRA-431-E-100 Rack mount Kit (EIA) with AC 100V
• - GRA-431-E-200 Rack mount Kit (EIA) with AC 200V
